Phil Wood

Phil Wood High Flange Classic Rear Track Hubs

$218.50
( 0 Reviews )
Step 1: Select Rim
Hub Color None Selected *
Current stock: 0

Phil Wood High Flange Classic hubs are available in a wide range of custom options.  Choose hole count, window cutout options, color, drive preference, and bearings to fully customize your Phil Wood hub.

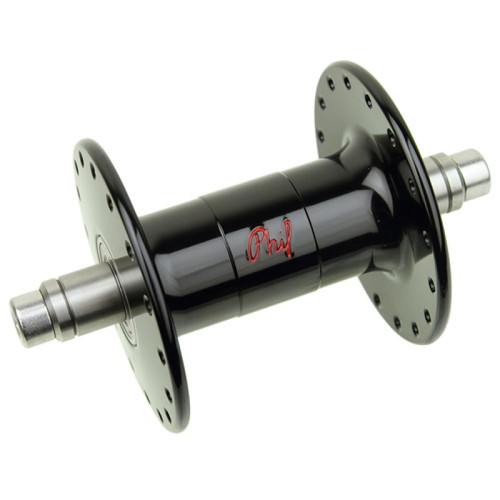

High flange track hubs feature a classic 3-inch flange design with flanges canted toward the rim for optimal spoke alignment.

All High Flange Classic hubs are also available in a Pro Track version.

What's the difference between Classic and Pro Track Hubs?
  • Pro Track hubs come standard with:
    • RLR (round hole pattern windows on high flange only)
    • Carbonyte bearings
    • Aluminum axle, end caps and washers
    • 7075 Aluminum Lockring Gun Metal Gray
    • Titanium axle bolts
    • Lower spoke count options (rear 24H, front 20, 24H)
    • Single Fixed or Double Fixed only
    • 120mm axle spacing only
Phil Wood products are designed, manufactured and assembled in San Jose, California.

Technical Information:

  • Weight: 379g (single fixed); 417g (double fixed); 390g (fixed/FW)
  • Hole Counts: (Standard 28, 32, 36), (Custom 20,24)
  • Axles Standard: 120mm, 126mm, 130mm (all bolt-on)
  • Hubshell Options: Standard High Flange, SLR (slotted windows), RLR (round hole pattern windows)
  • Drive Options: Single Fixed, Double Fixed, Freewheel, Fixed/Freewheel
  • Lockring Options: Stainless (standard), Titanium, Pro 7075 Alum. Gun Metal Gray
  • Attachment Options: (M8x1.25x40mm)- Stainless (standard), Pro Titanium bolt, Heavy duty bolt Chrome Dome
  • Pro Track version available here
  • Bearings: 2 x R8
  • Standard Colors: Polished silver, anodized black
  • Optional Colors: (can take several months from Phil Wood) Red, Blue, Green, Purple, Pink, Gun Metal Grey
  • Wheel building specifications here
Included Items:
  • Complete assembled hub with any custom hubshell options selected
  • Lockring on all fixed gear options
  • Any Optional cogs selected in drop down menus
Founded in 1971, Phil Wood & Co. is one of the oldest American cycling component manufacturers still in existence.  Phil Wood was the first to introduce sealed bearings in bicycle hubs. The company has developed a cult following and is known for building strong timeless components.

Inventory Note: We stock a wide variety of high-polish silver and black Phil Wood hubs, however our inventory fluctuates daily. We may need to order hubs with an average lead time of 2-4 business days. Some hubs, particularly anodized colored hubs, may take up to a few months. If your order is time sensitive we encourage you to contact us for up to the minute product availability and shipping lead times.
