Wheelbuilder AeroJacket Disc Covers
Convert your training wheel into a race day disc wheel. Wheelbuilder AeroJacket covers can be custom trimmed to fit most road wheels. AeroJacket disc covers are easy to install and provide wind cheating aerodynamics at a fraction of the cost of a disc wheel. Custom trimming is available for all PowerTap models so you can train and race on the same wheel. Check out our aerodynamic test results for detailed wind tunnel data and wheel comparisons.
STEP 1: Determine Wheel Compatibility - Please read the following information.
- Your wheel must have 5mm minimum clearance between the largest cog on your cassette and the drive side spokes.
- If the space is less than 5mm rubbing will occur between the chain and the cover.
- The best place to take your measurement is from the top of the largest cog to the nearest spokes on the drive side.
- Click here for a list of INCOMPATIBLE wheels. Click here for a list of INCOMPATIBLE bikes.
- Refunds are not accepted for listed INCOMPATIBLE wheels and bikes
- For Zipp wheels, see the Zipp Hub Identification Guide to help identify the correct Zipp hub in your Zipp factory-built wheel. Please specify which hub you have in the notes field.
STEP 2: Input Rim Dimensions - Please read the following information.
- Measure rim depth. Rim depth includes brake track as pictured below. Most rim manufacturers publish this information for aero wheels.
- Measure rim width at the widest point.
- Any additional information about your wheel Brand, Make, Model, and Year should be input in the text field.
- Drive side cover: flatter disc half; has "align valve stem here" decal.
- Non-drive side cover: lens-shaped disc half; has valve stem hole cutout.
- 10 plastic fasteners: (male/female screw post fastener pairs); 8 to do the job + 2 spares. Additional hardware is available.
- 2 valve hole cover: vinyl adhesive backed material.
- You will need to remove your cassette to install the Aero Disc Cover. Cassette removal tools are sold separately.

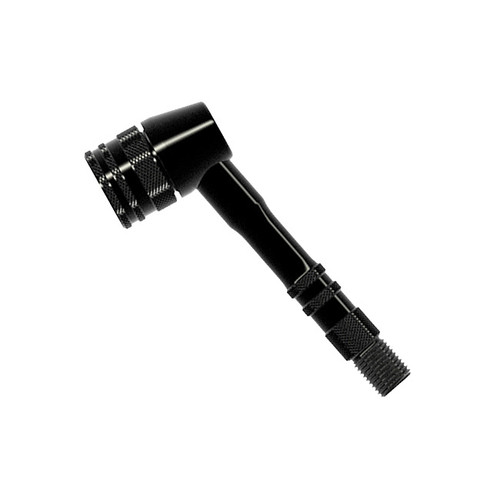

- When you race with a disc wheel, you'll need a 90-degree pump adapter to access your valve with a standard pump such as the Silca presta adapter.
Ordering: Please provide wheel and hub BRAND, MODEL and YEAR if possible for your rear wheel. We trim each cover individually based on the dimensions of your wheel and hub information. Please use the text fields at the bottom for any additional instructions or information about your wheel.
Installation and Troubleshooting:
- The covers might not lie completely flat when they are trimmed extremely small. This applies to very deep profile rims in excess of 80mm.
- A rim height of at least 16mm is required.
- Disc covers are not intended for continuous training use. Remove covers between races.
- DO NOT use Loctite on fasteners. Loctite will disintegrate the cover material and cause fasteners to pull through.
- AeroJacket Disc Covers take 2-3 business days (M-F) to fabricate. Please account for 2-3 business days (M-F) fabrication time when choosing an appropriate shipping method.
